when 表达式

Visual Studio Code sets various context keys and specific values depending on what elements are visible and active in the VS Code UI. These contexts can be used to selectively enable or disable extension commands and UI elements, such as menus and views.

For example, VS Code uses when clauses to enable or disable command keybindings, which you can see in the Default Keybindings JSON (Preferences: Open Default Keyboard Shortcuts (JSON)):

{ "key": "f5",  "command": "workbench.action.debug.start",
                   "when": "debuggersAvailable && !inDebugMode" },

Above, the built-in Start Debugging command has the keyboard shortcut kb(workbench.action.debug.start), which is only enabled when there is an appropriate debugger available (context key debuggersAvailable is true) and the editor isn't in debug mode (context key inDebugMode is false).

Conditional operators

A when clause can consist of a context key (for example, inDebugMode) or can use various operators to express more nuanced editor state.

Logical operators

Logical operators allow combining simple context keys or when-clause expressions that include other logical, equality, comparison, match, in/not in operators or parenthesized expressions.

Operator	Symbol	Example
Not	!	"!editorReadonly" or "!(editorReadonly || inDebugMode)"
And	&&	"textInputFocus && !editorReadonly"
Or	||	"isLinux || isWindows"

Note on logical operator precedence: the above table lists operators in order of highest to lowest precedence. Examples:

Written as	Interpreted as
!foo && bar	(!foo) && bar
!foo || bar	(!foo) || bar
foo || bar && baz	foo || (bar && baz)
!foo && bar || baz	(!foo && bar) || baz
!(foo || bar) && baz	(remains same) !(foo || bar) && baz

Equality operators

You can check for equality of a context key's value against a specified value. Note that the right-hand side is a value and not interpreted as a context key, meaning it is not looked up in the context.

Operator	Symbol	Example
Equality	==	"editorLangId == typescript" or "editorLangId == 'typescript'"
Inequality	!=	"resourceExtname != .js" or "resourceExtname != '.js'"

Notes:

• If the value on the right-hand side is a string containing whitespace, it must be wrapped in single-quotes - "resourceFilename == 'My New File.md'".
• === has the same behavior as ==, and !== has the same behavior as !=

Comparison operators

You can compare a context key's value against a number. Note that left- and right-hand side of the operator must be separated by whitespace - foo < 1, but not foo<1.

Operator	Symbols	Example
Greater than	>, >=	"gitOpenRepositoryCount >= 1" but not "gitOpenRepositoryCount>=1"
Less than	<, <=	"workspaceFolderCount < 2" but not "workspaceFolderCount<2"

Match operator

(previous name: key-value pair match operator)

Operator	Symbol	Example
Matches	=~	"resourceScheme =~ /^untitled$|^file$/"

There is a match operator (=~) for when clauses. The expression key =~ regularExpressionLiteral treats the right-hand side as a regular expression literal to match against the left-hand side. For example, to contribute context menu items for all Docker files, one could use:

   "when": "resourceFilename =~ /docker/"

Notes:

• The right-hand side of the =~ operator follows the same rules as regular expression literals (reference) in JavaScript, except characters need to follow escaping rules both of JSON strings and regular expressions. For example, a regular expression literal to match a substring file:// would be /file:\/\// in JavaScript but /file:\\/\\// in a when clause because a backslash needs to be escaped in a JSON string and a slash needs to be escaped in the regular expression pattern.
• There does not exist an operator !=~, but you can negate the match expression - !(foo =~ /baz/).

Regular expression flags

It is possible to use flags with the regular expression literals. For example, resourceFilename =~ /json/i or myContextKey =~ /baz/si.

Supported flags: i, s, m, u.

Ignored flags: g, y.

'in' and 'not in' conditional operators

The in operator for when clauses allows for a dynamic lookup of a context key's value within another context key's value. For example, if you wanted to add a context menu command to folders that contain a certain type of file (or something that can't be statically known), you can now use the in operator to achieve it. You can use the not in operator to check the opposite condition.

Operator	Symbol	Example
In	in	"resourceFilename in supportedFolders"
Not in	not in	"resourceFilename not in supportedFolders"

First, determine which folders should support the command, and add the folder names to an array. Then, use the setContext command to turn the array into a context key:

vscode.commands.executeCommand('setContext', 'ext.supportedFolders', [ 'test', 'foo', 'bar' ]);

// or

// Note in this case (using an object), the value doesn't matter, it is based on the existence of the key in the object
// The value must be of a simple type
vscode.commands.executeCommand('setContext', 'ext.supportedFolders', { 'test': true, 'foo': 'anything', 'bar': false });

Then, in the package.json you could add a menu contribution for the explorer/context menu:

// Note, this assumes you have already defined a command called ext.doSpecial
"menus": {
  "explorer/context": [
    {
      "command": "ext.doSpecial",
      "when": "explorerResourceIsFolder && resourceFilename in ext.supportedFolders"
    }
  ]
}

In that example, we are taking the value of resourceFilename (which is the name of the folder in this case) and checking for its existence in the value of ext.supportedFolders. If it exists, the menu will be shown. This powerful operator should allow for richer conditional and dynamic contributions that support when clauses, for example menus, views, etc.

Available context keys

Below are some of the available context keys, which evaluate to Boolean true/false.

The list here isn't exhaustive and you can find other when clause contexts by searching and filtering in the Keyboard Shortcuts editor (Preferences: Open Keyboard Shortcuts) or reviewing the Default Keybindings JSON file (Preferences: Open Default Keyboard Shortcuts (JSON)). You can also identify context keys you are interested in using the Inspect Context Keys utility.

Context name	True when
Editor contexts
editorFocus	An editor has focus, either the text or a widget.
editorTextFocus	The text in an editor has focus (cursor is blinking).
textInputFocus	Any editor has focus (regular editor, debug REPL, etc.).
inputFocus	Any text input area has focus (editors or text boxes).
editorTabMovesFocus	Whether kbstyle(Tab) will move focus out of the editor.
editorHasSelection	Text is selected in the editor.
editorHasMultipleSelections	Multiple regions of text are selected (multiple cursors).
editorReadonly	The editor is read only.
editorLangId	True when the editor's associated language ID matches. Example: "editorLangId == typescript".
isInDiffEditor	The active editor is a difference editor.
isInEmbeddedEditor	True when the focus is inside an embedded editor.
Operating system contexts
isLinux	True when the OS is Linux.
isMac	True when the OS is macOS.
isWindows	True when the OS is Windows.
isWeb	True when accessing the editor from the Web.
List contexts
listFocus	A list has focus.
listSupportsMultiselect	A list supports multi select.
listHasSelectionOrFocus	A list has selection or focus.
listDoubleSelection	A list has a selection of 2 elements.
listMultiSelection	A list has a selection of multiple elements.
Mode contexts
inSnippetMode	The editor is in snippet mode.
inQuickOpen	The Quick Open dropdown has focus.
Resource contexts
resourceScheme	True when the resource Uri scheme matches. Example: "resourceScheme == file"
resourceFilename	True when the Explorer or editor filename matches. Example: "resourceFilename == gulpfile.js"
resourceExtname	True when the Explorer or editor filename extension matches. Example: "resourceExtname == .js"
resourceDirname	True when the Explorer or editor's resource absolute folder path matches. Example: "resourceDirname == /users/alice/project/src"
resourcePath	True when the Explorer or editor's resource absolute path matches. Example: "resourcePath == /users/alice/project/gulpfile.js"
resourceLangId	True when the Explorer or editor title language ID matches. Example: "resourceLangId == markdown"
isFileSystemResource	True when the Explorer or editor file is a file system resource that can be handled from a file system provider.
resourceSet	True when an Explorer or editor file is set.
resource	The full Uri of the Explorer or editor file.
Explorer contexts
explorerViewletVisible	True if Explorer view is visible.
explorerViewletFocus	True if Explorer view has keyboard focus.
filesExplorerFocus	True if File Explorer section has keyboard focus.
openEditorsFocus	True if OPEN EDITORS section has keyboard focus.
explorerResourceIsFolder	True if a folder is selected in the Explorer.
Editor widget contexts
findWidgetVisible	Editor Find widget is visible.
suggestWidgetVisible	Suggestion widget (IntelliSense) is visible.
suggestWidgetMultipleSuggestions	Multiple suggestions are displayed.
renameInputVisible	Rename input text box is visible.
referenceSearchVisible	Peek References peek window is open.
inReferenceSearchEditor	The Peek References peek window editor has focus.
config.editor.stablePeek	Keep peek editors open (controlled by editor.stablePeek setting).
codeActionMenuVisible	Code Action menu is visible.
parameterHintsVisible	Parameter hints are visible (controlled by editor.parameterHints.enabled setting).
parameterHintsMultipleSignatures	Multiple parameter hints are displayed.
Debugger contexts
debuggersAvailable	An appropriate debugger extension is available.
inDebugMode	A debug session is running.
debugState	Active debugger state. Possible values are inactive, initializing, stopped, running.
debugType	True when debug type matches. Example: "debugType == 'node'".
inDebugRepl	Focus is in the Debug Console REPL.
Integrated terminal contexts
terminalFocus	An integrated terminal has focus.
terminalIsOpen	An integrated terminal is opened.
Timeline view contexts
timelineFollowActiveEditor	True if the Timeline view is following the active editor.
Timeline view item contexts
timelineItem	True when the timeline item's context value matches. Example: "timelineItem =~ /git:file:commit\\b/".
Extension contexts
extension	True when the extension's ID matches. Example: "extension == eamodio.gitlens".
extensionStatus	True when the extension is installed. Example: "extensionStatus == installed".
extensionHasConfiguration	True if the extension has configuration.
Global UI contexts
notificationFocus	Notification has keyboard focus.
notificationCenterVisible	Notification Center is visible at the bottom right of VS Code.
notificationToastsVisible	Notification toast is visible at the bottom right of VS Code.
searchViewletVisible	Search view is open.
sideBarVisible	Side Bar is displayed.
sideBarFocus	Side Bar has focus.
panelFocus	Panel has focus.
inZenMode	Window is in Zen Mode.
isCenteredLayout	Editor is in centered layout mode.
workbenchState	Can be empty, folder (1 folder), or workspace.
workspaceFolderCount	Count of workspace folders.
replaceActive	Search view Replace text box is open.
view	For view/title and view/item/context, the view to display the command in. Example: "view == myViewsExplorerID".
viewItem	For view/item/context, the contextValue from the tree item. Example: "viewItem == someContextValue".
webviewId	For webview/context, the webview ID to display the command in. Example: "webviewId == catCoding".
isFullscreen	True when window is in fullscreen.
focusedView	The identifier of the currently focused view.
canNavigateBack	True if it is possible to navigate back.
canNavigateForward	True if it is possible to navigate forward.
canNavigateToLastEditLocation	True if it is possible to navigate to the last edit location.
Global Editor UI contexts
textCompareEditorVisible	At least one diff (compare) editor is visible.
textCompareEditorActive	A diff (compare) editor is active.
editorIsOpen	True if one editor is open.
groupEditorsCount	Number of editors in a group.
activeEditorGroupEmpty	True if the active editor group has no editors.
activeEditorGroupIndex	A number starting from 1 reflecting the position of an editor group in the editor grid. The group with index 1 will be the first in the top-left corner.
activeEditorGroupLast	Will be true for the last editor group in the editor grid.
multipleEditorGroups	True when multiple editor groups are present.
activeEditor	The identifier of the active editor in a group.
activeEditorIsDirty	True when the active editor in a group is dirty.
activeEditorIsNotPreview	True when the active editor in a group is not in preview mode.
activeEditorIsPinned	True when the active editor in a group is pinned.
inSearchEditor	True when focus is inside a search editor.
activeWebviewPanelId	The id of the currently active webview panel.
activeCustomEditorId	The id of the currently active custom editor.
Configuration settings contexts
config.editor.minimap.enabled	True when the setting editor.minimap.enabled is true.

Note: You can use any user or workspace setting that evaluates to a boolean here with the prefix "config.".

Visible/focused view when clause context

You can have a when clause that checks if a specific View is visible or focused.

Context name	True when
view.${viewId}.visible	True when specific view is visible. Example: "view.workbench.explorer.fileView.visible"
focusedView	True when specific view is focused. Example: "focusedView == 'workbench.explorer.fileView'"

View identifiers:

• workbench.explorer.fileView - File Explorer
• workbench.explorer.openEditorsView - Open Editors
• outline - Outline view
• timeline - Timeline view
• workbench.scm - Source Control
• workbench.scm.repositories - Source Control Repositories
• workbench.debug.variablesView - Variables
• workbench.debug.watchExpressionsView - Watch
• workbench.debug.callStackView - Call Stack
• workbench.debug.loadedScriptsView - Loaded Scripts
• workbench.debug.breakPointsView - Breakpoints
• workbench.debug.disassemblyView - Disassembly
• workbench.views.extensions.installed - Installed extensions
• extensions.recommendedList - Recommended extensions
• workbench.panel.markers.view - Problems
• workbench.panel.output - Output
• workbench.panel.repl.view - Debug Console
• terminal - Integrated Terminal
• workbench.panel.comments - Comments

Visible view container when clause context

You can have a when clause that checks if a specific View Container is visible

Context key	True when
activeViewlet	True when view container is visible in the sidebar. Example: "activeViewlet == 'workbench.view.explorer'"
activePanel	True when view container is visible in the panel. Example: "activePanel == 'workbench.panel.output'"
activeAuxiliary	True when view container is visible in the secondary sidebar. Example: "activeAuxiliary == 'workbench.view.debug'"

View container identifiers:

• workbench.view.explorer - File Explorer
• workbench.view.search - Search
• workbench.view.scm - Source Control
• workbench.view.debug - Run
• workbench.view.extensions - Extensions
• workbench.panel.markers - Problems
• workbench.panel.output - Output
• workbench.panel.repl - Debug Console
• terminal - Integrated Terminal
• workbench.panel.comments - Comments

If you want a when clause that is enabled only when a specific view container has focus, use sideBarFocus or panelFocus or auxiliaryBarFocus in combination with activeViewlet or activePanel or activeAuxiliary context keys.

For example, the when clause below is true only when the File Explorer has focus:

"sideBarFocus && activeViewlet == 'workbench.view.explorer'"

Check a setting in a when clause

In a when clause, you can reference a configuration (setting) value by prefixing it with config., for example config.editor.tabCompletion or config.breadcrumbs.enabled.

Add a custom when clause context

If you are authoring your own VS Code extension and need to enable/disable commands, menus, or views using a when clause context and none of the existing keys suit your needs, you can add your own context key with the setContext command.

The first example below sets the key myExtension.showMyCommand to true, which you can use in enablement of commands or with the when property. The second example stores a value that you could use with a when clause to check if the number of cool open things is greater than 2.

vscode.commands.executeCommand('setContext', 'myExtension.showMyCommand', true);

vscode.commands.executeCommand('setContext', 'myExtension.numberOfCoolOpenThings', 4);

Inspect Context Keys utility

If you would like to see all currently active context keys at runtime, you can use the Developer: Inspect Context Keys command from the Command Palette (kb(workbench.action.showCommands)). Inspect Context Keys will display context keys and their values in the VS Code Developer Tools Console tab (Help > Toggle Developer Tools).

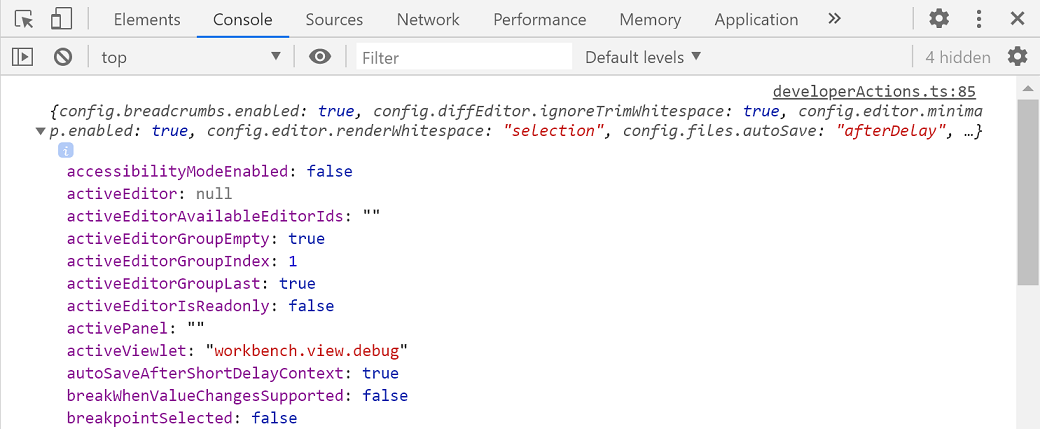

When you run Developer: Inspect Context Keys, your cursor will highlight elements in the VS Code UI and when you click on an element, the current context keys and their states will be output as an object to the Console.

The list of active context keys is extensive and may contain custom context keys from extensions you have installed.

Note: Some context keys are for VS Code internal use and may change in the future.
